$102.78 + GST

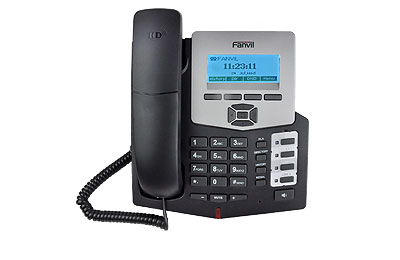

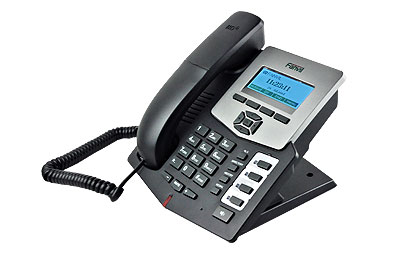

Model: C58P

2-Line Entry level IP Phone with PoE

Need an affordable and convenient IP Telephone with HD Voice? The C58 is highly effective designed for a mid-range phone that can be used as an integrated phone or a standalone. It is a business class SIP phone with an integrated dual Ethernet switch, G.722 codec support, supports SRTP, support BLF, and 4 DSS keys. POE is supported.

Product Specification

Phone features
• Vxworks OS
• Support SIP2.0 (RFC3261) and correlative RFCs
• SIP support 2 SIP servers, and backup SIP proxy servers
• Supports SIP UDP / TCP/ TLS • SIP support SIP domain, SIP authentication (none, basic, MD5) , DNS name of server, Peer to Peer / IP Call Display
• Display Resolution: 128×48 with Backlight Key Features
• Large dot matrix LCD display and soft keys make user easier to use
• Soft keys programmable
• Function keys programmable (each key have 2-color led indication)
• Supports RJ-9 headset
• Multi languages displayed Audio Features • HD voice: HD handset
•Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32
• DTMF: In-band, RFC 2833 and SIP INFO
• Full duplex hands- free speaker phone with acoustic echo cancellation
• Voice Activity Detection (VAD) • Comfort Noise Generation (CNG)
• Background noise suppression • Adaptive jitter buffers
• Packet loss concealment • SRTP
• mute Advanced Features • Call forwarding (busy/ no answer/ always)
• Call transfer ( unattended/ attended/ semi-attended )
• Call holding
• Call waiting
• 3 way call conference
• Capable of 10 way conversation
• BLF list • Join call • Call pickup
• Call park • Redial • Call back
• Call completion • Hot desking
• Auto redial • Predial
• SIP messaging , MWI
• Flexible dial plan
• Barring function for outgoing calls
• Do not disturb • Auto answer
• Caller ID display
• CLIR(rejects anonymous calls)
• CLIP(to make an anonymous call)
• Dial without registration
• Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records
• Phonebook 500 records
• Speed Dial (abbreviated dialing)

The C Series IP Phones are a Business Grade IP handset with a huge range of features and flexibility. The C Series was designed and built for Enterprise Businesses with its modern design and ergonomic feel.

• Hotline/Warm-line
• Call rejection
• Black List/ White List
• Intercom/Intercom barge
• Password dial, DTMF hidden
• Action URL/ active URI
• Voice codec setting for each SIP line
• Multicast • LDAP, XML phonebook
• Web dial
• Keypad lock, Emergency call Network/ Security Features
• WAN / LAN?10/100M Ethernet ports
• Bridge mode and route
• PPPoE for xDSL
• 802.3af POE?optional?
• VLAN?Voice VLAN/Data VLAN?
• 802.1X
• NAT (NAPT)
• NAT transverse :Support STUN client
• DHCP client on WAN/ DHCP server on LAN
• Main DNS and secondary DNS server
• DNS Relay • SNTP Client
• Firewall and DMZ
• Web management access restricted
• VPN(L2TP/Open VPN)
• ping, tracert, telnet Maintenance & Management
• WEB ,telnet and LCD menu management
• Management with different account right
• Recover firmware and factory reset through POST mode
• Upgrade firmware via HTTP, HTTPS, FTP, TFTP • DHCP option66 and custom option for auto provisioning
• Auto Provisioning to upgrade configuration file with AES(256) encryption
• TR-069 and Syslog Physical features
• Adapter Input: AC 100-240V
• Adapter Output: DC 5V/1A
• WAN Port -10/100 BASE-T RJ-45 for LAN
• LAN Port-10/100 BASE-T RJ-45 for PC
• Headset : RJ9
• Power consumption: IDLE: 2.5W Active: 2.8W
• Display Resolution: 128×48 pixels
• Operation Temperature: 0?40?
• Relative Humidity: 10?65?
• Main Chipset : Broadcom
• SDRAM: 16MB
• FLASH: 4MB
• Weight- Phone:0.99kg
• Dimension:235x225x97 mm
