$125 + GST

Model: C62

 6 SIP accounts, 8 DSS Keys, 1 IAX2, and PoE on board

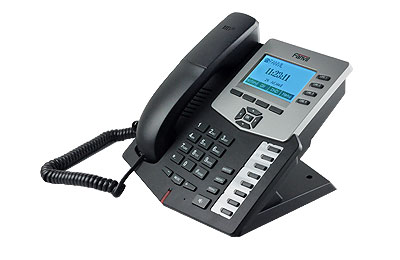

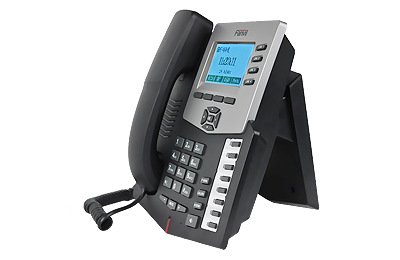

 Stylish, practical and economical, the C62 IP Phone is an advanced IP phone. It is equipped with the latest Broadcom’s high-definition voice chipset, with high-quality handset and the speaker that provides clear and consistent voice quality in rich detail. It supports 6 SIP accounts, 8 DSS Keys, 1 IAX2, and PoE on board.



Product Specification

Phone features
• vxworks OS
• Supports SIP 2.0 (RFC3261) and correlative RFCs
• SIP supports 6 SIP servers, and backup SIP proxy servers.
• Supports SIP UDP/TCP/TLS • Support IAX2,iax2 line call
• SIP support SIP domain, SIPauthentication (none, basic, MD5),DNS name of server, Peer to Peer/ IP Call
Display
• Display Resolution: 128×64 with Backlight
Key Features
• Large dot matrix LCD display and soft keys make user easier to use
• Soft keys programmable
• Line keys programmable (each key have led indication)
• Function keys programmable (each key have dual-color led indication)

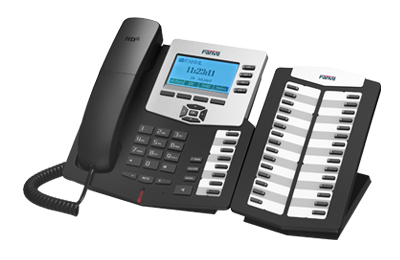

• Expansion board (up to connect 5 expansion boards, each board have 30 function keys, each key have 2-color led indication) • Supports RJ-9 headset
• Multi languages displayed
Audio Features
• HD voice: HD handset
• Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32 • DTMF: In-band, RFC 2833 and SIP INFO
• Full duplex hands- free speaker phone with acoustic echo cancellation
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Background noise suppression
• Adaptive jitter buffers • Packet loss concealment
• SRTP
• Different country tones
• Mute
Advanced Features
• Call forwarding (busy/ no answer/ always)
• Call transfer ( unattended/ attended/ semi-attended )
• Call holding
• Call waiting
• 3 way call conference
• Capable of 10 way conversation
• BLF list • Join call
• Call pickup /Call back /Call Completion
• Call park
• Last Number Redial / Auto Redial
• Hot desking
• Predial
• SIP messaging , MWI
• Flexible dial plan
• Barring function for outgoing calls
• Do not disturb
• Auto answer
• Caller ID display
• CLIR(rejects anonymous calls)
• CLIP(to make an anonymous call)
• Dial without registration
• Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records
• Phonebook 500 records
• Speed Dial (abbreviated dialling)

The C Series IP Phones are a Business Grade IP handset with a huge range of features and flexibility. The C Series was designed and built for Enterprise Businesses with its modern design and ergonomic feel.





• Hotline/Warm-line
• Call rejection • Black List/ White List
• Intercom/Intercom barge
• Password dial, DTMF hidden
• Action URL/ active URI
• Voice codec setting for each SIP line
• Multicast • LDAP, XML phonebook
• Web dial
• Keypad lock, Emergency call

Network/ Security Features
• WAN / LAN:10/100M Ethernet ports,
• Bridge mode and route
• PPPoE for xDSL
• 802.3af POE
• VLAN(Voice VLAN/Data VLAN)
• 802.1X
• NAT (NAPT)
• NAT transverse :Support STUN client
• DHCP client on WAN/ DHCP server on LAN
• Main DNS and secondary DNS server
• DNS Relay
• SNTP Client
• Firewall and DMZ
• Web management access restricted
• VPN(L2TP/Open VPN)
• ping, tracert, telnet

Maintenance & Management
• WEB ,telnet and LCD menu management
• Management with different account right
• Recover firmware and factoryreset through POST mode
• Upgrade firmware via HTTP, HTTPS, FTP, TFTP
• DHCP option66 and custom option for auto provisioning
• Auto Provisioning to upgrade configuration file with AES(256) encryption
• TR-069 and Syslog

Physical features
• Adapter Input: AC 100-240V
• Adapter Output: DC 5V/1A
• WAN Port -10/100 BASE-T RJ-45 for LAN
• LAN Port-10/100 BASE-T RJ-45 for PC
• Headset : RJ9
• Expansion: RJ45
• Power consumption: IDLE: 2.5W Active: 2.8W
• Display Resolution: 128×64 pixels
• Operation Temperature: 0〜40℃
• Relative Humidity: 10〜65%
• Main Chipset: Broadcom
• SDRAM: 16MB
• FLASH: 4MB
• Weight- Phone:0.99kg
• Dimension:235x225x97mm

Product Specification
